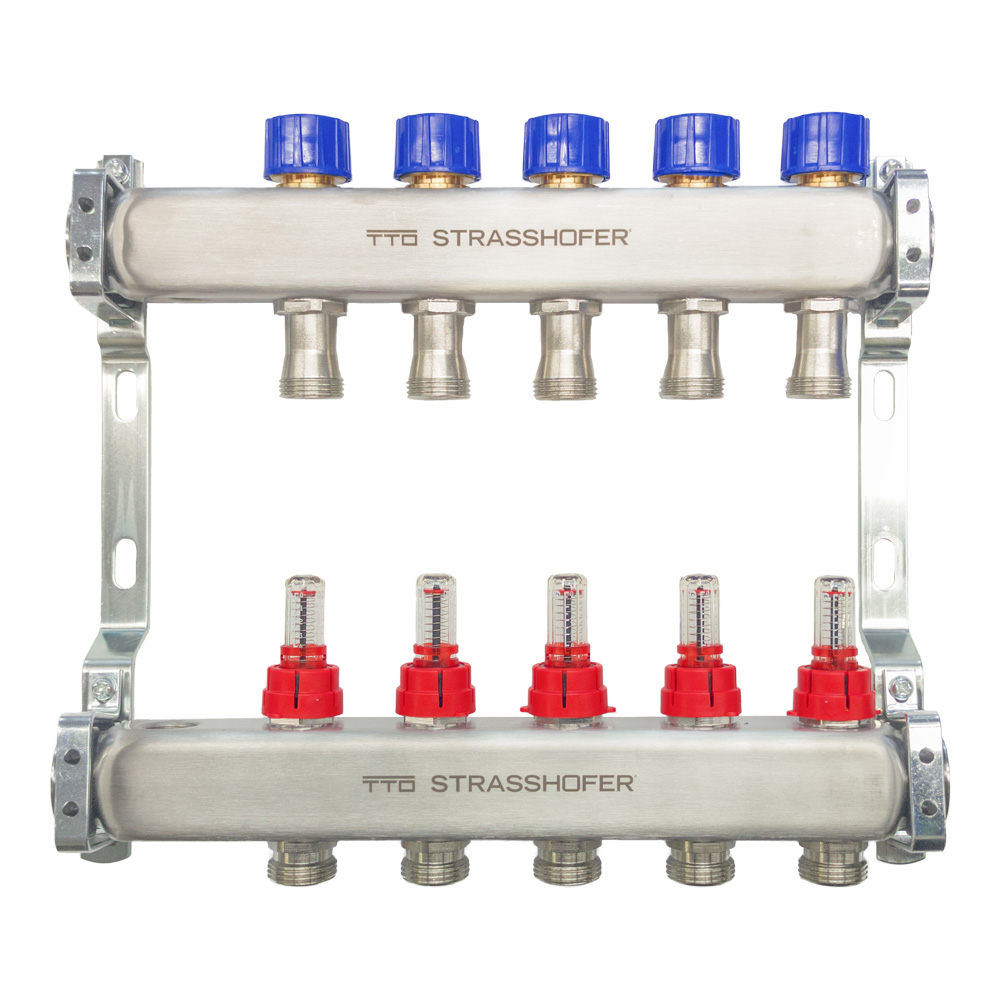

FLOOR HEATING MANIFOLD
AdapTTO

The AdapTTO floor manifold enables automatic hydraulic balancing and adjusts the flow rate of the individual heating circuits to meet demand.

Characteristics

Manifold bar: Stainless steel AISI 304, rustproof and durable.
Dimensions: DN32 stainless steel profile, 1330 mm² cross sectional area.
Connections: G1" internal thread on both sides.
Supply: Flow meters 0‑5,0 l/min.
Return: Integrated valves, pre-adjustable, connection thread M30x1,5 mm, with manual adjustment cap, actuator can be retrofitted, K_vs 2,74.
Outlets: G¾" external thread with Eurocone, 50 mm pitch.
Pressure rating / system: PN6 for heating systems with water quality according to VDI 2035.

Items delivered: Set consists of supply and return bar, each with two G½" internal threads for vent valves. Pre-assembled in sound-insulated holders, including labelling stickers and adjustment instructions, packed in cardboard box.

ORDER NO.
2702	AdapTTO 2 for 2 circuits, length: 190 mm
2703	AdapTTO 3 for 3 circuits, length: 240 mm
2704	AdapTTO 4 for 4 circuits, length: 290 mm
2705	AdapTTO 5 for 5 circuits, length: 340 mm
2706	AdapTTO 6 for 6 circuits, length: 390 mm
2707	AdapTTO 7 for 7 circuits, length: 440 mm
2708	AdapTTO 8 for 8 circuits, length: 490 mm

ORDER NO.
2709	AdapTTO 9 for 9 circuits, length: 540 mm
2710	AdapTTO 10 for 10 circuits, length: 590 mm
2711	AdapTTO 11 for 11 circuits, length: 640 mm
2712	AdapTTO 12 for 12 circuits, length: 690 mm
2713	AdapTTO 13 for 13 circuits, length: 740 mm
2714	AdapTTO 14 for 14 circuits, length: 790 mm
2715	AdapTTO 15 for 15 circuits, length: 840 mm
