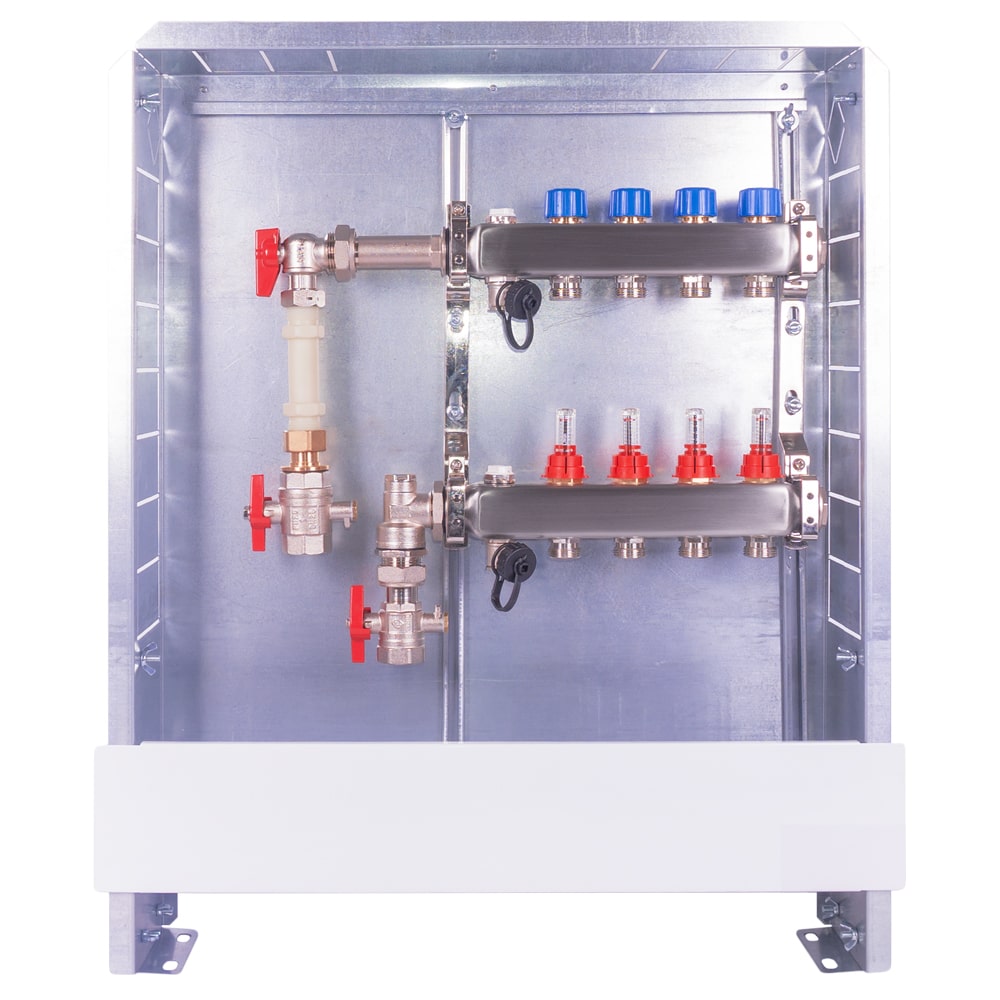

PRE-ASSEMBLED MANIFOLD STATION
TT‑WMZs 1"

This vertical manifold station has a 110 mm meter adapter in G1" – suitable for efficient heat quantity recording at higher flow rates.

Characteristics

The pre-assembled manifold station consists of a manifold cabinet, a heating circuit manifold and a heat meter installation kit. In the following, it is possible to choose between different versions in order to adapt the station to your individual requirements.

Manifold cabinet
TT‑VS‑110T / 80T - flush-mounted, height: 700‑880 mm, depth: 100‑198 mm / 80‑120 mm
TT‑VS‑A - surface-mounted, height: 564 mm, depth: 125 mm
Stainless steel manifold
VA-FBif with flow meters 0‑5,0 l/min, can be shut-off
DYNA-if with flow indicator 0‑5,0 l/min
Heat meter installation kit TT‑WMZs 1" with heat meter up to 1,5 Qn.
Return consisting of 1x ball valve G¾" M10, 1x ball valve G1" M10, 1x fitting piece for meter 110 mm, 1x screwing part.
Supply consisting of 1x ball valve G1" M10, 2x fill and drain valve G½", 2x manifold end plug G1", 2x vent valve G½"
Connection variant right or left possible

ORDER NO.
37.02.202 - 37.15.202	TT‑WMZs 1" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑110T, stainless steel manifold VA‑FBif
38.02.202 - 38.15.202	TT‑WMZs 1" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑110T, stainless steel manifold DYNA‑if
37.02.206 - 37.15.206	TT‑WMZs 1" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑80T, stainless steel manifold VA‑FBif
38.02.206 - 38.15.206	TT‑WMZs 1" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑80T, stainless steel manifold DYNA‑if
37.02.210 - 37.13.210	TT‑WMZs 1" for 2‑13 circuits, surface-mounted cabinet TT‑VS‑A, stainless steel manifold VA‑FBif
38.02.210 - 38.13.210	TT‑WMZs 1" for 2‑13 circuits, surface-mounted cabinet TT‑VS‑A, stainless steel manifold DYNA‑if
