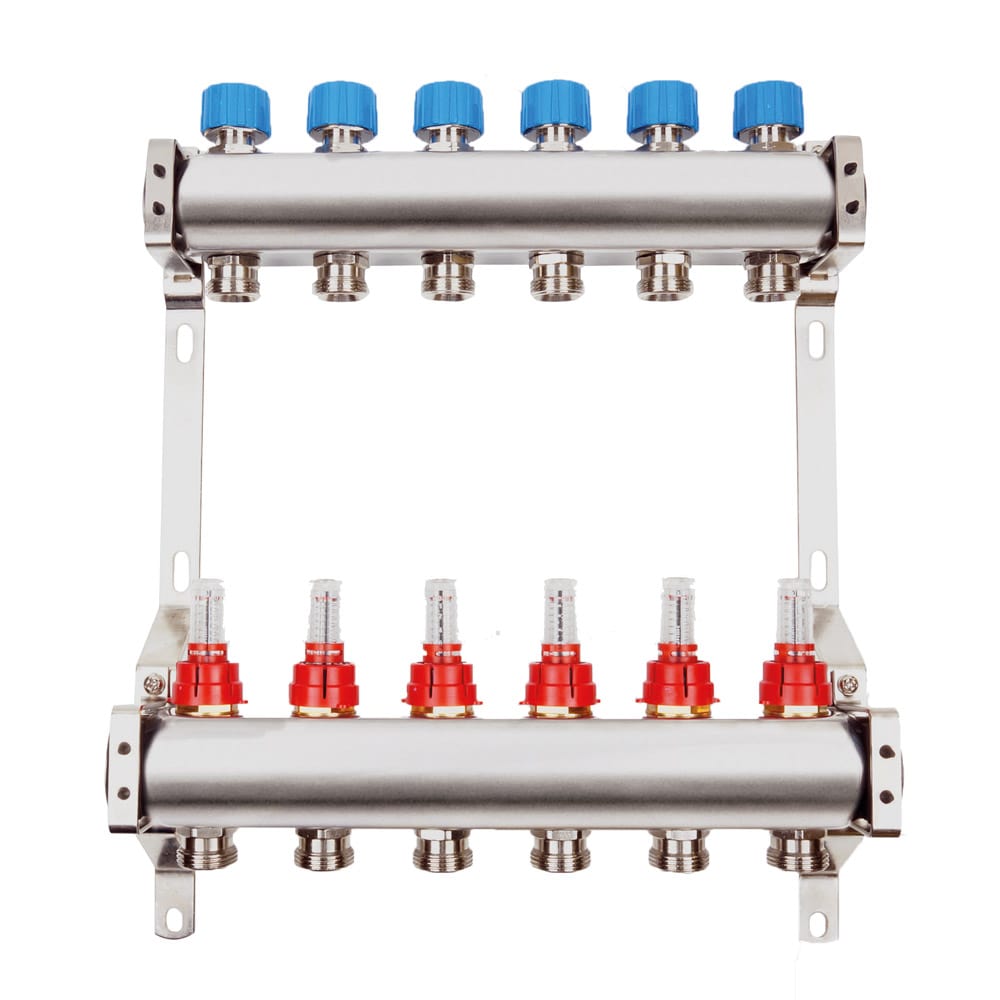

Characteristics
- Manifold bar: Stainless steel AISI 304, rustproof and durable.
- Dimensions: DN50 stainless steel profile, 1760 mm2 cross sectional area.
- Connections: G1¼" internal thread on both sides.
- Supply: Flow meters 0‑5,0 l/min.
- Rücklauf: Integrated valves, pre-adjustable, connection thread M30x1,5 mm, with manual adjustment cap, actuator can be retrofitted, Kvs 2,74.
- Outlets: G¾" external thread with Eurocone, 50 mm pitch.
- Pressure rating / system: PN6 or heating systems with water quality according to VDI 2035.
Items delivered: Set consists of supply and return bar. Sound-insulated holders are supplied loose, including labelling stickers and adjustment instructions, packed in cardboard box.
| ORDER NO. | |
|---|---|
| 3902 | L‑FBif 2 for 2 circuits, length: 125 mm |
| 3903 | L‑FBif 3 for 3 circuits, length: 175 mm |
| 3904 | L‑FBif 4 for 4 circuits, length: 225 mm |
| 3905 | L‑FBif 5 for 5 circuits, length: 275 mm |
| 3906 | L‑FBif 6 for 6 circuits, length: 325 mm |
| 3907 | L‑FBif 7 for 7 circuits, length: 375 mm |
| 3908 | L‑FBif 8 for 8 circuits, length: 425 mm |
| 3909 | L‑FBif 9 for 9 circuits, length: 475 mm |
| 3910 | L‑FBif 10 for 10 circuits, length: 525 mm |
| ORDER NO. | |
|---|---|
| 3911 | L‑FBif 11 for 11 circuits, length: 575 mm |
| 3912 | L‑FBif 12 for 12 circuits, length: 625 mm |
| 3913 | L‑FBif 13 for 13 circuits, length: 675 mm |
| 3914 | L‑FBif 14 for 14 circuits, length: 725 mm |
| 3915 | L‑FBif 15 for 15 circuits, length: 775 mm |
| 3916 | L‑FBif 16 for 16 circuits, length: 825 mm |
| 3917 | L‑FBif 17 for 17 circuits, length: 875 mm |
| 3918 | L‑FBif 18 for 18 circuits, length: 925 mm |
