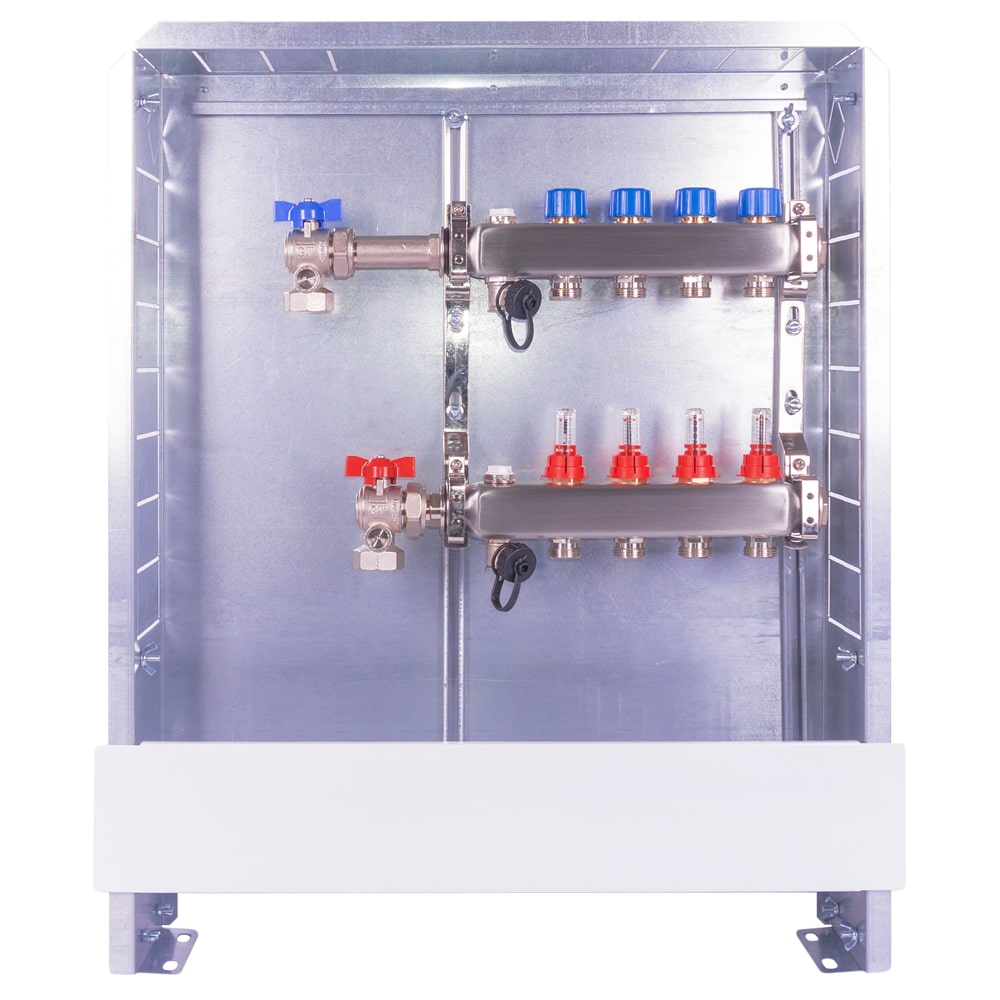

PRE-ASSEMBLED MANIFOLD STATION
TT‑AGEs ¾"

This pre-assembled manifold station has a vertical primary shut-off valve in G¾" and is ideal for compact installations.

Characteristics

The pre-assembled manifold station consists of a manifold cabinet, a stainless steel heating circuit manifold and the primary shut-off assembly. In the following, it is possible to choose between different versions in order to adapt the station to your individual requirements.

Manifold cabinet
TT‑VS‑110T / 80T - flush-mounted, height: 700‑880 mm, depth: 100‑198 mm / 80‑120 mm
TT‑VS‑A - surface-mounted, height: 564 mm, depth: 125 mm
Stainless steel manifold
VA-FBif with flow meters 0‑5,0 l/min, can be shut-off
DYNA-if with flow indicator 0‑5,0 l/min
Primary shut-off assembly TT‑AGEs ¾" with 2x ball valve G1", 2x manifold end plug G1", 2x vent valve G½"
Connection variant right or left possible

ORDER NO.
37.02.101 - 37.15.101	TT‑AGEs ¾" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑110T, stainless steel manifold VA‑FBif
38.02.101 - 38.15.101	TT‑AGEs ¾" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑110T, stainless steel manifold DYNA‑if
37.02.105 - 37.15.105	TT‑AGEs ¾" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑80T, stainless steel manifold VA‑FBif
38.02.105 - 38.15.105	TT‑AGEs ¾" for 2‑15 circuits, flush-mounted cabinet TT‑VS‑80T, stainless steel manifold DYNA‑if
37.02.109 - 37.15.109	TT‑AGEs ¾" for 2‑15 circuits, surface-mounted cabinet TT‑VS‑A, stainless steel manifold VA‑FBif
38.02.109 - 38.15.109	TT‑AGEs ¾" for 2‑15 circuits, surface-mounted cabinet TT‑VS‑A, stainless steel manifold DYNA‑if
