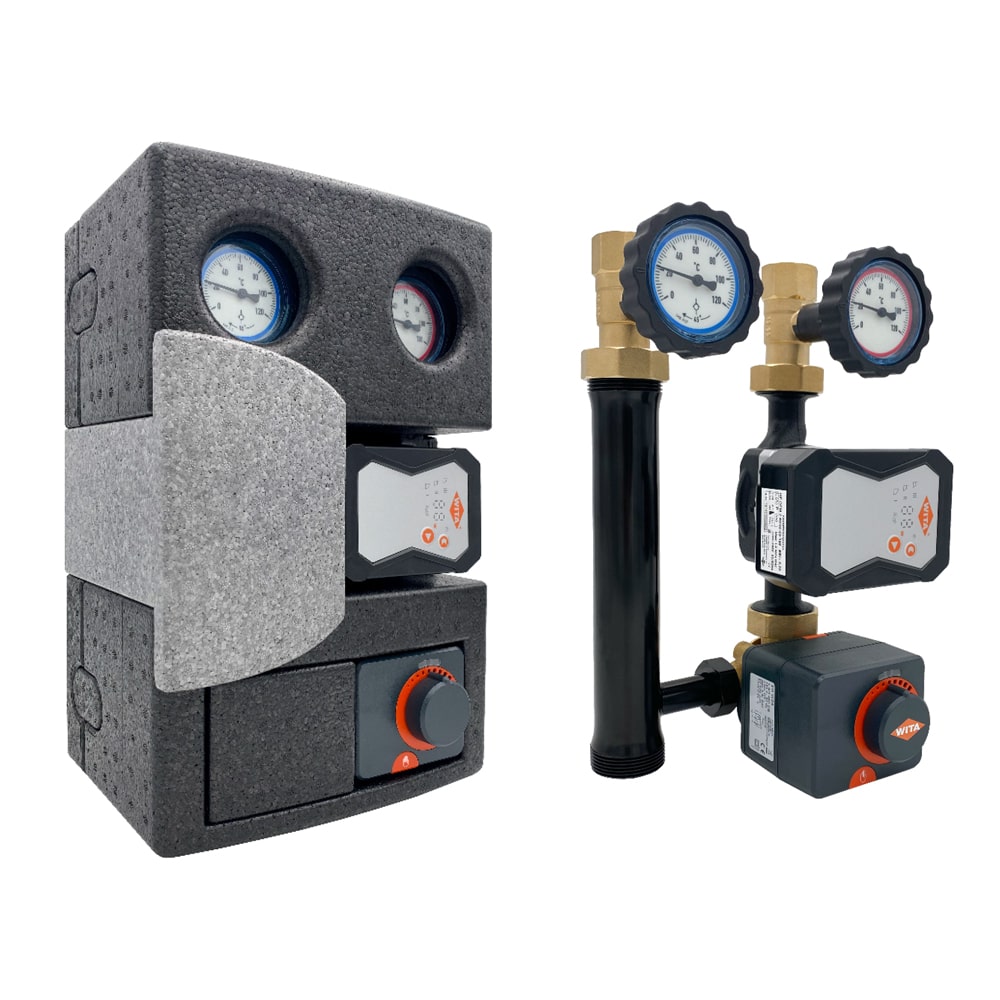

PUMP GROUP
DN32

Characteristics

• Top connection: G1¼" internal thread.
• Bottom connection: G2" external thread.
• Pump connection: 180 mm, R1½" external thread.
• Materials: Steel, brass, EPP insulation.
• Sealings: PTFE, EPDM.
• Temperature indicator: 0 to 120°C.
• Operating temperature: max. 110°C.
• Operating overpressure: max. 6 bar.
• K_vs value mixed heating circuit: 13,0 m³/h.
• K_vs value unmixed heating circuit: 21,0 m³/h.

Depending on the system requirements, versions for unmixed or mixed heating circuits are available.

For maximum flexibility, our pump groups are available in different versions - unmixed for direct heating or cooling circuits and mixed with a actuator for temperature-controlled applications such as underfloor heating. Depending on the system requirements, the groups can be supplied with or without an integrated circulation pump. This allows individual requirements to be implemented easily and efficiently - from simple heating circuits to complex system control.

Thanks to the clever design with high-quality components and pre-assembled parts, the pump groups enable quick installation, safe operation and long-term, low-maintenance use. Whether for new builds or modernization - they are the ideal solution for a compact and efficient connection to the heating circuit manifold.
