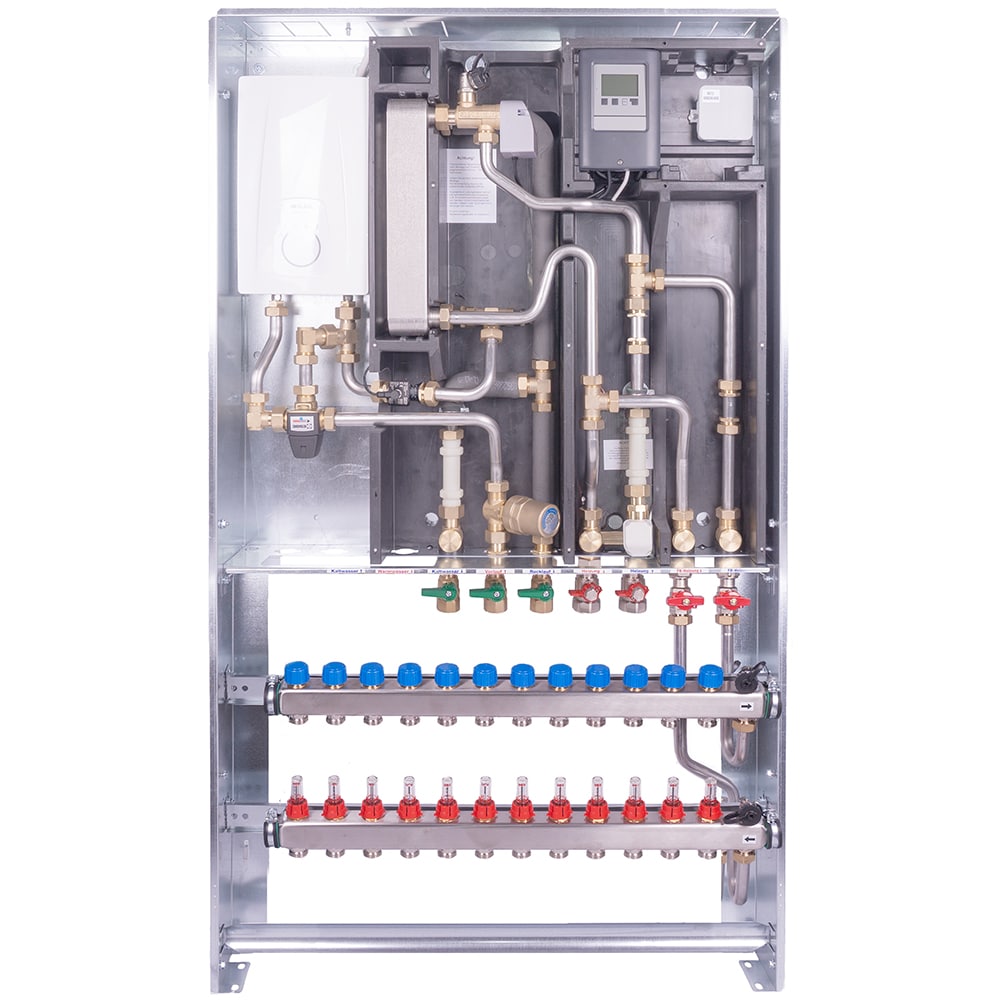

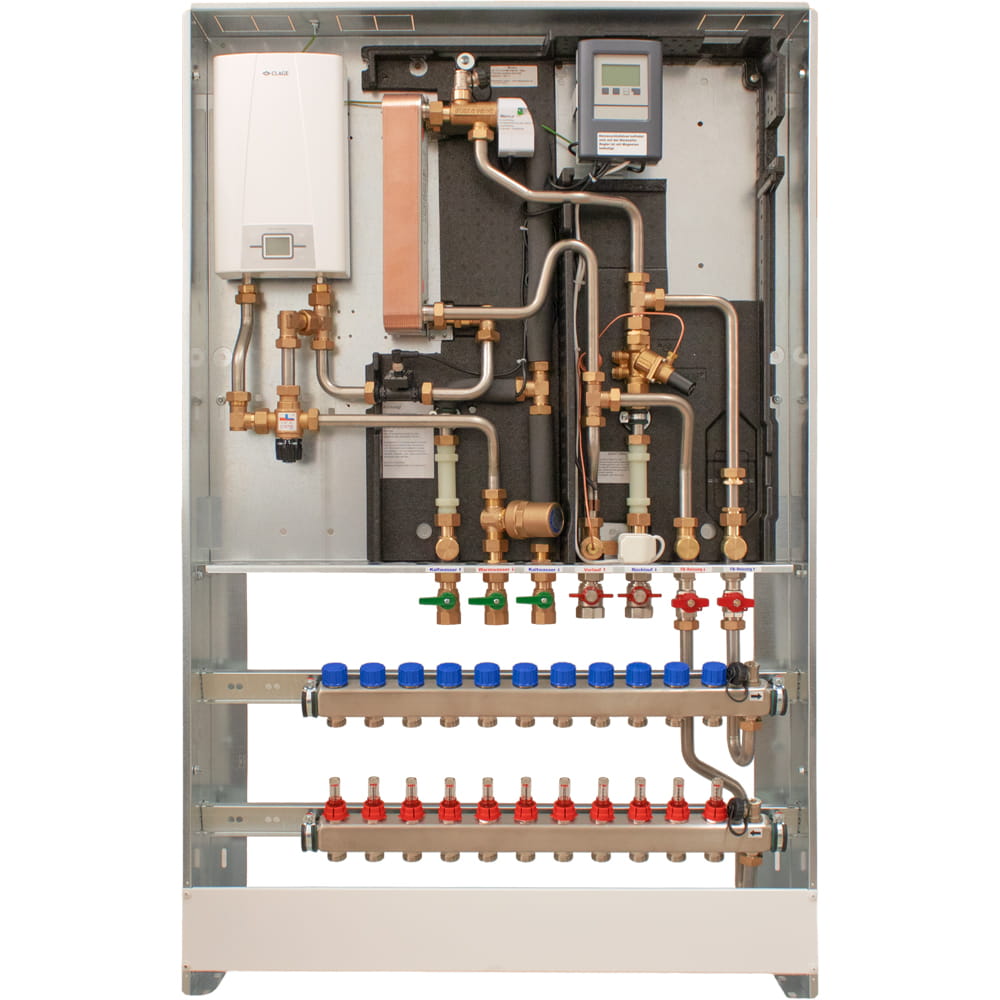

FLAT HIU STATION
WITH REHEATING
BE-FNE

Characteristics

• step a valve stepper motor valve: Precise control of hot water preparation using the flow principle. Minimizes energy losses and prevents the formation of Legionella bacteria.
• Electronic instantaneous water heater: Reheating with precise temperature control from 20-60 °C.
• Energy efficient: Operation with low heating flow temperatures (35 - 40°C), optimized for heat pumps with a high COP value for maximum efficiency.
• Hard foam insulated box: With excellent thermal insulation for energy-saving operation and reliable protection.
• Protection and comfort: Includes drinking water priority circuit and water hammer damper for a secure water supply.
• Insulated cold water pipes: Prevents heat transfer and increases energy efficiency.
• Stainless steel piping: Robust, corrosion-resistant pipes (18x1 mm).
• Low-profile design: Compact depth of 130 mm.

Domestic hot water preparation
The drinking water is heated using the flow principle through a stainless steel plate heat exchanger only when it is needed. A sensor based on the vortex principle monitors the temperature and flow. A controller uses a "step a valve" step motor valve to regulate the necessary heating energy in order to minimize circulation losses and legionella formation. The plate exchanger is not kept warm.
In addition, a universal installation fitting of 110 mm for the cold water meter and another universal installation fitting of 110 mm for heat meters up to 1,5 Qn are integrated into the insulation box.
